LogicPort Trigger Setup

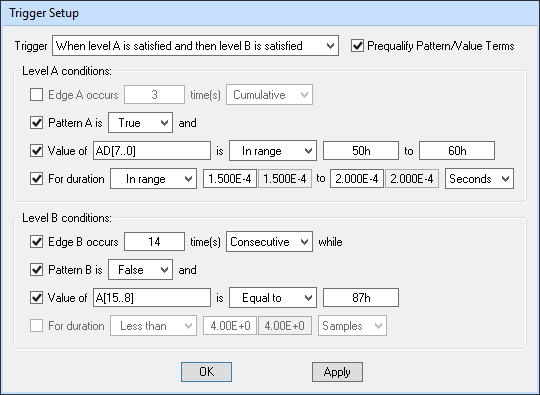

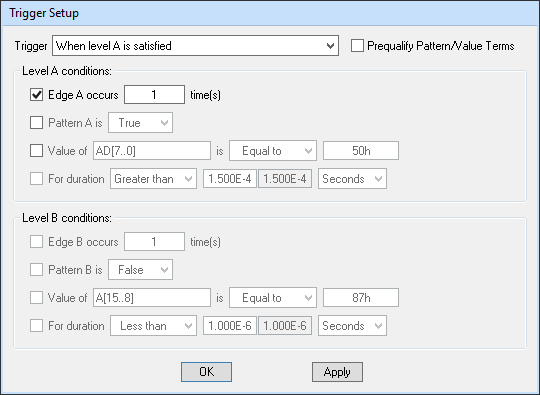

Plain-English trigger setup makes the LogicPort easy to use. Trigger schemes can be as simple or complex as required. The image above shows a fairly elaborate scheme, while the image below shows one of the simplest possible schemes. Patterns and edges are specified in the waveform window.
